Wave Open Firmware

First setup

After the first reboot the Wave shows Set up Wave, with two choices:

  • Use without Wi-Fi: the Wave works as a USB speakerphone and records to itself right away. You can set up Wi-Fi later.
  • Set up Wi-Fi: Wi-Fi is needed to send recordings to your own server and to get updates.

Join Wi-Fi

Section titled “Join Wi-Fi”

Tap Set up Wi-Fi. Later, you find the same thing in the Menu: swipe down from the top of Home, or tap the status at the top, then Wi-Fi and Set up Wi-Fi. When the Wave is already connected the button reads Change network, and it asks first, because the Wave leaves its network while setup runs.

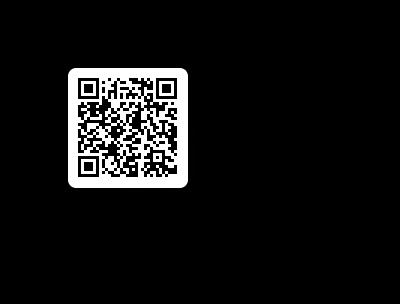

The Wave then opens its own temporary setup network and shows a QR code:

The Wi-Fi setup QR code

  1. Scan the code with your phone’s camera. It joins the setup network.
  2. The setup page opens. If it doesn’t, tap the Sign in to network prompt your phone shows.
  3. Pick your network, enter its password, and save. The Wave restarts and connects.

No camera? Under the code the Wave shows the network name (Wave- and four characters), its password and the address 192.168.2.1. Join that network and open http://192.168.2.1/ in a browser.

The setup network uses WPA2 with a new random password each time, so your Wi-Fi password never crosses the air in the clear. It closes after five minutes if you don’t save. The Wave stores your Wi-Fi password as a hashed key, not as typed. More: Wi-Fi.

The setup page

Section titled “The setup page”

The setup page is only there while the setup network is up. It has sections for Device, Audio, Webhook, Storage, Advanced and Wi-Fi:

  • Save and connect to selected network saves everything and joins the network you picked.
  • Save settings and reconnect saves everything and goes back to a saved network. Use it to change settings without changing networks.

Secrets (the webhook token, the PIN) are write-only: the page never shows a saved value. Leave the field blank to keep it, or tick Clear saved value. Invalid input keeps the page open with an error next to the field.

config.toml

Section titled “config.toml”

Every setting lives in /data/waved/config.toml on the Wave. The setup page and the Wave’s own screens write to it. You can also edit it over ADB.

Edit it in place, in a shell on the Wave:

Terminal window
adb shell
vi /data/waved/config.toml   # on the Wave; type exit when done

Or copy it to your computer and back:

Terminal window
adb pull /data/waved/config.toml
# edit config.toml
adb push config.toml /data/waved/config.toml
adb shell chmod 600 /data/waved/config.toml

Then restart waved so it reads the file:

Terminal window
adb shell killall waved

The start-up script restarts waved about 3 seconds after it exits.

Every section rejects keys it doesn’t know. If the file doesn’t load, waved falls back to config.toml.bak, then to the defaults, and says why in /data/waved/waved.log. When you change a setting on the Wave, waved re-reads the file before it saves, so your edits stay.

Key Default Meaning
config_version 2 Format version. Leave it.
device.name "Wave Open" Shown on the Wave and sent in webhook metadata.
device.language "en" Interface language. English is the only one so far.
device.first_run_done false Set once Set up Wave has been finished or skipped.
device.mic_height "medium" "low", "medium" or "high". waved also stores it in the MCU as the height the lift rises to at power-on.
audio.mode "omni" Pickup pattern: "omni" (Whole room), "cardioid" (Focused), "supercardioid" (Narrow), "figure8" (Two sides) or "stereo". Pick Follow talker on the Wave, or as Steered on the setup page.
audio.speaker_volume 100 Speaker volume, 0 to 100.
audio.mic_volume 200 Microphone gain in percent, 0 to 800. 100 is unity.
audio.nr_level "off" Noise reduction: "off", "low", "med" or "high".
audio.beam_aim_deg 0.0 Aim for Focused, Narrow and Two sides, in degrees clockwise from the top of the screen.
display.brightness_pct 80 Backlight, 5 to 100 percent.
display.dim_after_s 120 Seconds without a touch before the resting screen. 0 is never.
display.off_after_s 600 Seconds without a touch before the screen turns off. 0 is never. Never off while recording or in a call.
time.zone "UTC" IANA time zone name, for example "Europe/Brussels".
time.clock_24h true Show 14:30 instead of 2:30 pm.
recording.pre_recording false Keep the last 30 seconds in memory so Record includes them.
recording.format "opus" "opus" (Ogg Opus, about 15 MB an hour) or "flac" (lossless, about 200 MB an hour). Applies to the next recording.
recording.ask_timeout_s 60 With upload_mode = "ask", an unanswered recording is kept on the Wave after this many seconds (15 to 600).
tones.enabled true Sounds for mute, volume, and recording start and stop.
api.endpoint "" Webhook URL for recordings. Empty keeps them on the Wave.
api.auth_token "" Sent as Authorization: Bearer …. Empty sends no header.
api.upload_mode "automatic" "automatic", "ask" or "local_only".
api.allow_insecure_http false Allow a plain http:// endpoint. For local testing only.
api.retry_max 5 Automatic attempts in one failure cycle.
api.retry_backoff_ms 1000 First delay before a retry.
api.retry_max_backoff_ms 60000 Longest delay between retries.
storage.prune_uploaded_at_percent 85 Recordings volume usage, in percent, that starts removing already-uploaded recordings.
storage.minimum_free_mb 2048 Below this much free space, the oldest uploaded recordings are removed.
security.device_password "" The device PIN, stored as a salted hash. Empty is no PIN.
security.ota_server "" Base URL of your update server. Empty turns updates off.
security.ota_allow_downgrade false Let a signed package install an older or the same version. Only in this file, not on the setup page.
ntp.servers ["pool.ntp.org", "time.google.com"] Time servers.

Send recordings to your server

Section titled “Send recordings to your server”

Set Webhook URL on the setup page (api.endpoint), and a Bearer token if your server wants one. Use https://; a plain http:// URL also needs Allow insecure HTTP.

For each recording it uploads, the Wave sends one POST with three parts: the meeting ID, a JSON metadata file and the audio, mono at 48 kHz, in the recording’s format: Ogg Opus (audio/ogg; codecs=opus) by default, or FLAC (audio/flac) if you chose it. Take the format from the part’s Content-Type rather than assume one. The meeting ID is also the Idempotency-Key header, so your server can drop repeats. When you save the setup page with a webhook URL set, the Wave restarts and sends a small webhook.test request.

After recording picks what happens when you stop:

  • Automatic: queue the upload at once.
  • Ask after recording: the Wave asks Send this recording?. If nobody answers, it keeps the recording on the Wave after ask_timeout_s seconds.
  • Keep locally: never upload.

Without a URL, recordings stay on the Wave in /mnt/udisk/recordings, and automatic ones wait in the queue until you set one. Menu → Uploads shows how many were sent, are waiting and failed, with a retry button when something failed.

To try it, run the test receiver from waved/ on a computer on the same network, and set the URL to http://<your computer's address>:8787/meetings with Allow insecure HTTP on:

Terminal window
python3 scripts/webhook_receiver.py --port 8787 --output ./webhook-inbox

The full request format: Recording webhooks.

Updates

Section titled “Updates”

The Wave never asks Insta360 for updates. It installs signed packages from a server you run, and only if:

  • your build has your update key’s public half compiled in (WAVED_UPDATE_PUBKEY, see Install), and
  • security.ota_server points at your server (setup page, Advanced, OTA server).

A build without the key refuses every update; its System → Firmware update row reads Off. The Wave checks two minutes after it starts and then every six hours. Tapping Firmware update checks at once.

Making a key, packing a release and serving it: Updates, owner’s quick start.

PIN lock

Section titled “PIN lock”

Set a PIN of 4 to 6 digits on the setup page, under Advanced, Device PIN. With a PIN set, the Wave asks for it before it opens Files, Wi-Fi, Bluetooth, Uploads and System. It never asks for mute, volume, Record, audio mode or noise reduction.

  • After you enter it, the Wave stays unlocked until the screen rests.
  • After five wrong tries, the keypad waits one minute.
  • config.toml keeps a salted hash, never the digits.

Forgot the PIN? Set device_password = "" under [security] in config.toml over ADB, then run adb shell killall waved.
